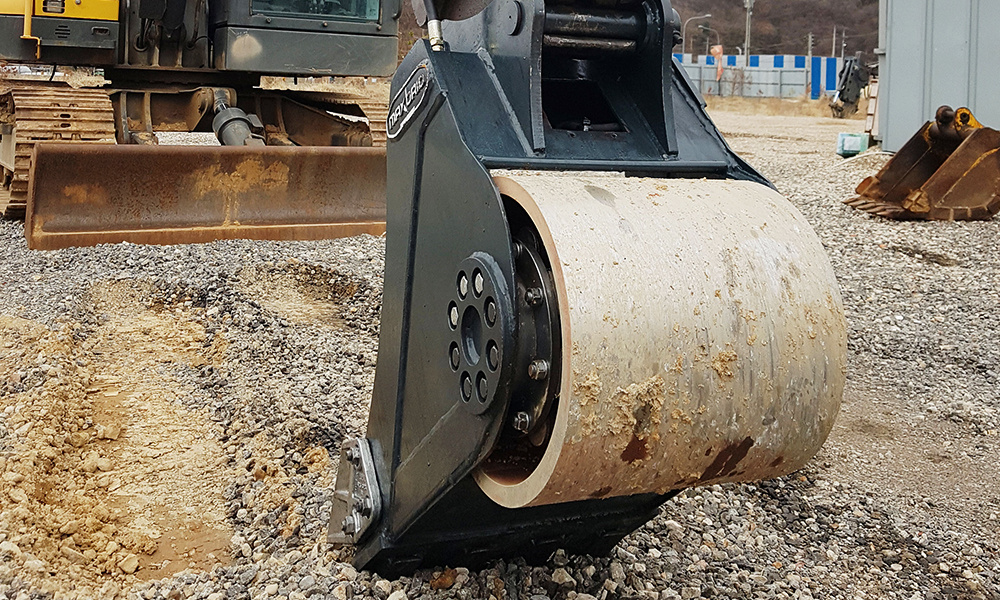

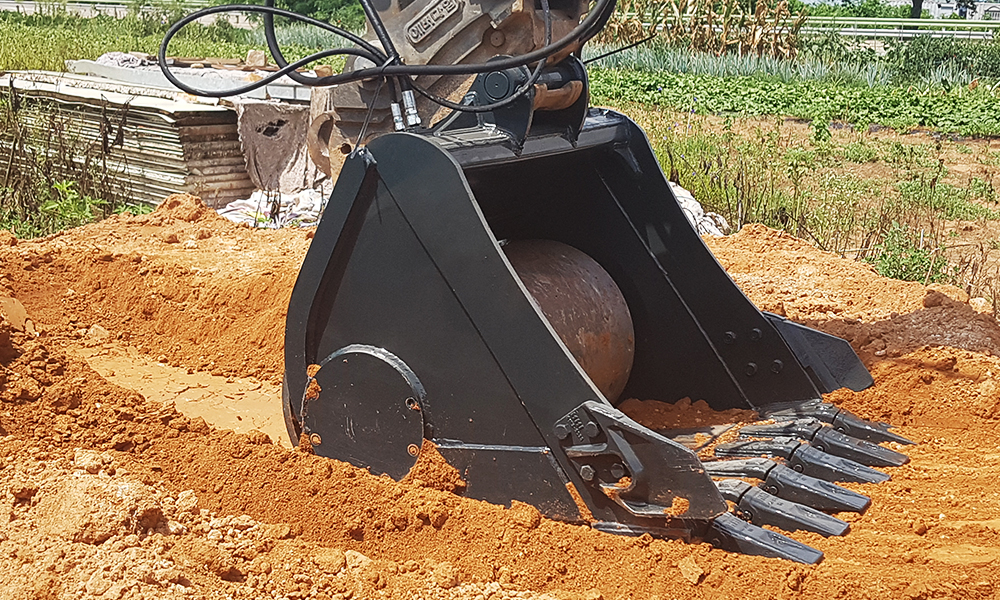

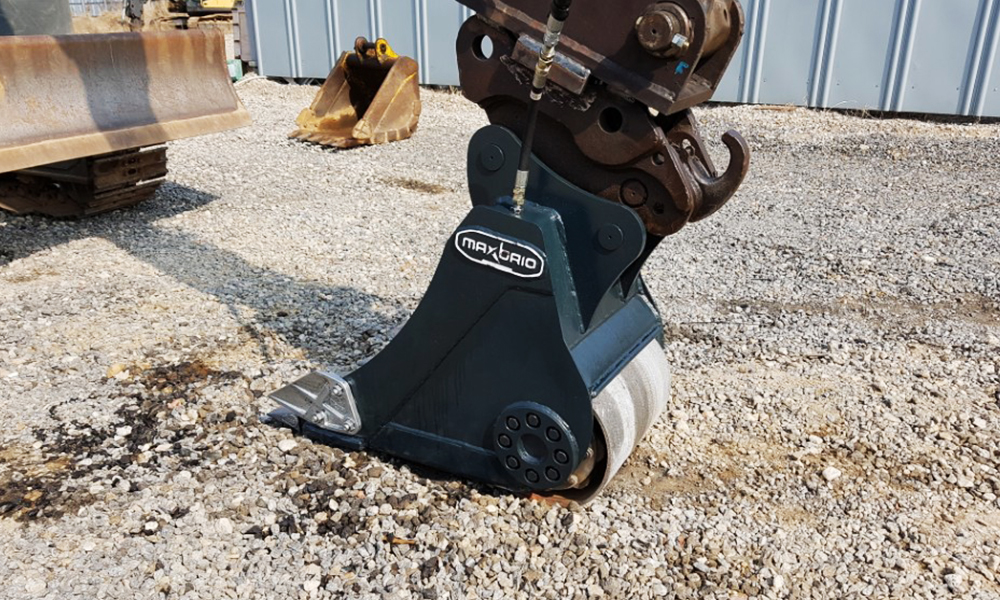

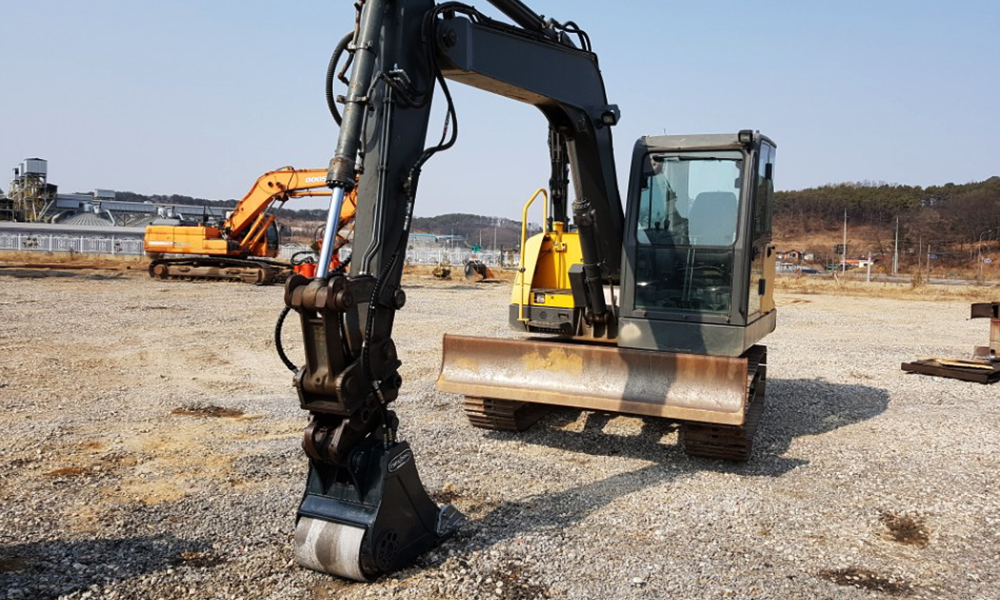

ROLLER BUCKET
Applicable range from 5 to 25 ton class excavator
- MODELS

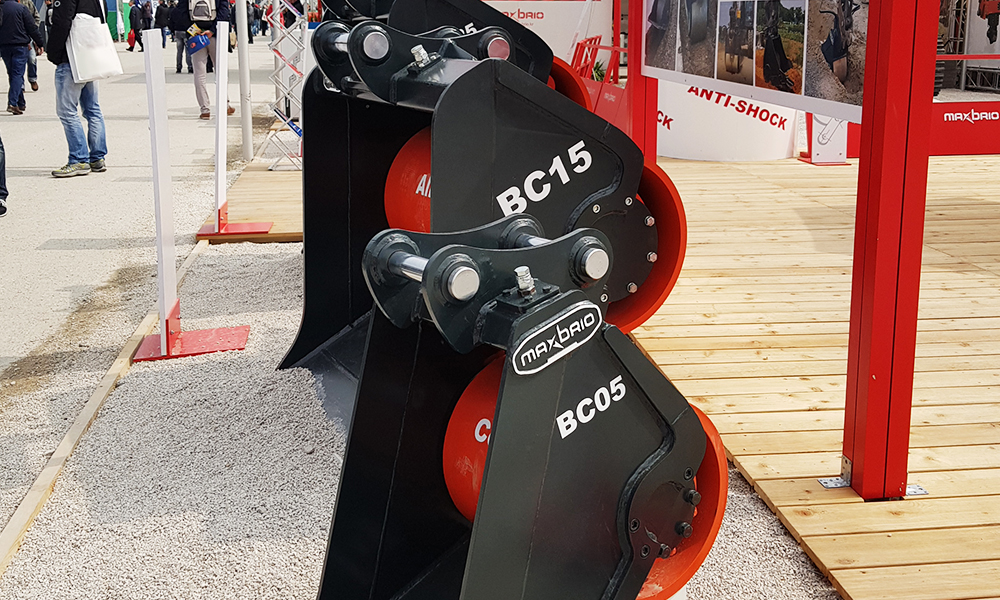

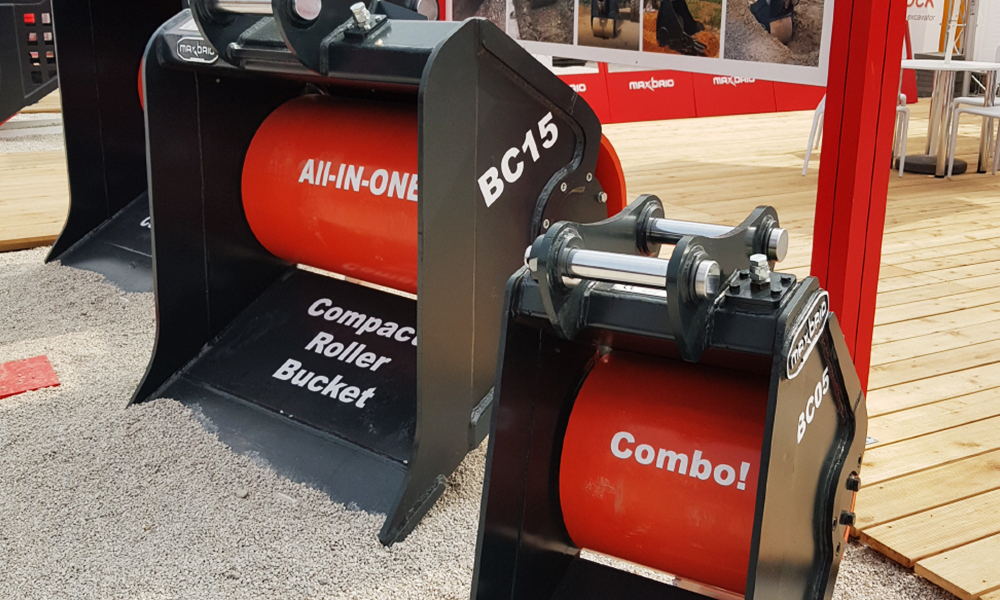

- BC05, BC15, BC25
- EXCAVATOR WEIGHTS
- ≥ 5 ≤ 25 Ton
Features / Advantages
-
Versatile Vibro-Compactor Bucket
-
Trenching and compacting with just one attachment
-
2 times more compacting force than the standard compactor
-
Unique vibro-isolation technology
-
Highly effective in narrow ditch compaction work like pipe line, road and slope
Applications
Demolitions
Roadworks
Trenching
Downtown areas
Excavation
Landscaping
Forestry
Specifications
| BC series | BC05 | BC15 | BC25 | |
|---|---|---|---|---|
| Excavator class | ton | 5-7 | 14-18 | 20-25 |
| Frequency | rpm | 3000 | 2500 | 2500 |
| Setting Oil Pressure | kg/cm2 | 250 | 250 | 250 |
| Required Oil Flow | 1/min | 40-48 | 100-120 | 150-180 |
| (H) Height | mm/in | 806 / 31.7 | 1110 / 43.7 | 1350 / 53.1 |
| (L) Length | mm/in | 921 / 36.3 | 1175 / 46.3 | 1412 / 55.6 |
| (W) Width | mm/in | 478 / 18.8 | 1138 / 44.8 | 1185 / 46.7 |
| (W1) Width | mm/in | 402 / 15.8 | 1033 / 40.7 | 1074 / 42.3 |
| Capacity | m3 | 0.1 | 0.4 | 0.7 |
| Weight | kg/lb | 290 /639 | 1090 / 2403 | 1670 / 3682 |
The above specifications are subject to change without prior notice for quality enhancement.
