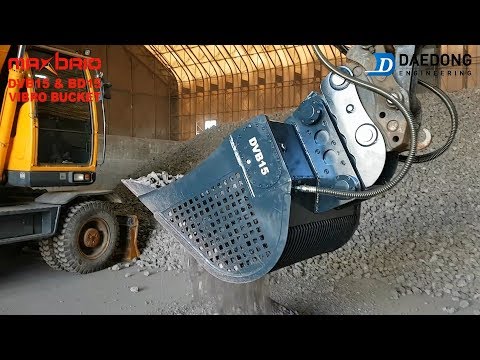

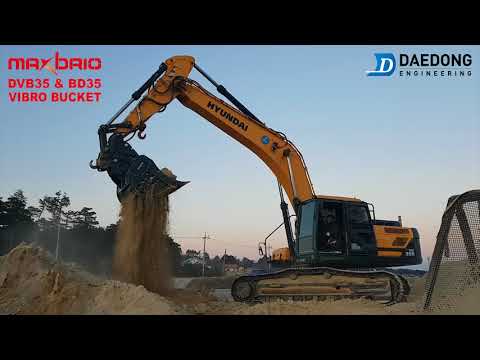

VIBRO SCREENING BUCKET
Vibrating Bucket : differentiated from standard bucket
Applicable range from 5 to 42 ton class excavator
- MODELS
- DVB05, DVB15, DVB25, DVB35, DVB45
- EXCAVATOR WEIGHTS
- ≥ 5 ≤ 42 Ton
-
Stabilizer Link
Absorbing 97% recoil shock
-
Cushion Elastomer
Protect the excavator and operator
-
Dual Safety Lock
Double-Safety device with secured stability
- Vibration combined with screening bucket offers highest productivity
- Ideal excavation work in permafrost, sticky soil and soft rock
- Made of wear-resistant steel offering superior durability
Applications
Demolitions
Roadworks
Quarries
Mining
Tunnel
Trenching
Downtown areas
Excavation
Landscaping
Forestry
Specifications
| DVB series | DVB05 | DVB15 | DVB25 | DVB35 | DVB45 | |
|---|---|---|---|---|---|---|
| Excavator class | ton | 5-7 | 14-16 | 18-22 | 28-30 | 32-42 |
| Frequency | rpm | 2500 | 2500 | 2500 | 2500 | 2500 |
| Setting Oil Pressure | kg/cm2 | 250 | 250 | 250 | 250 | 250 |
| Required Oil Flow | 1/min | 30-40 | 80-100 | 130-150 | 180-200 | 180-200 |
| (H) Height | mm | 1152 | 1400 | 1587 | 1710 | 2040 |
| in | 45.3 | 55.1 | 62.4 | 67.3 | 80.3 | |
| (L) Length | mm | 723 | 1024 | 1180 | 1255 | 1287 |
| in | 28.4 | 40.3 | 46.4 | 49.4 | 50.6 | |
| (W) Width | mm | 650 | 1100 | 1250 | 1350 | 1350 |
| in | 25.5 | 43.3 | 49.2 | 53.1 | 53.1 | |
| (W1) Distance | mm | 100 X 100 | 110 X 110 | 120 X 120 | 130 X 130 | 130 X 130 |
| in | 3.9 X 3.9 | 4.3 X 4.3 | 4.7 X 4.7 | 5.1 X 5.1 | 5.1 X 5.1 | |
The above specifications are subject to change without prior notice for quality enhancement.
