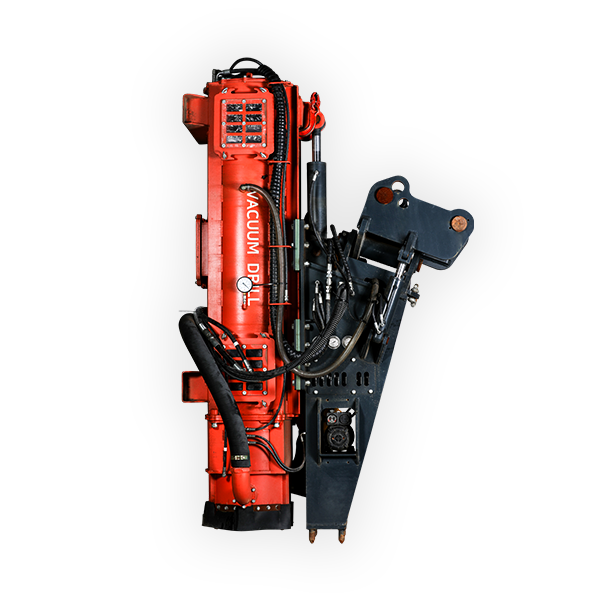

VACUUM DRILL
Applicable range from 28 to 35 ton class excavator
- MODELS
- VB
- EXCAVATOR WEIGHTS
- ≥ 28 ≤ 35 Ton
Features / Advantages
-
3 times faster drilling speed
-
15dB noiseless than compared to standard drilling machine
-
Noiseless drilling covered by vacuumed housing
-
New paradigm for drilling equipment
-
Productive and economical than the existing drill
-
Alternative solution for blasting in noise-restricted area
Applications
Road
Railway
Environment
Demolitions
Tunnel
Downtown areas
Landscaping
Forestry
Specifications
| VACUUM DRILL | |||
|---|---|---|---|
| Excavator class | ton | 28-35 | |
| Drill Diameter | mm/in | 75-105 / 2.9-4.1 | |
| Drill Length | mm/in | MAX. 1300 / 51.1 | |
| Drill Speed | mm/min | 900-1200 / 35-47 | |
| Rotating Speed | rpm | 0-250 | |
| Rod | - | T45 | |

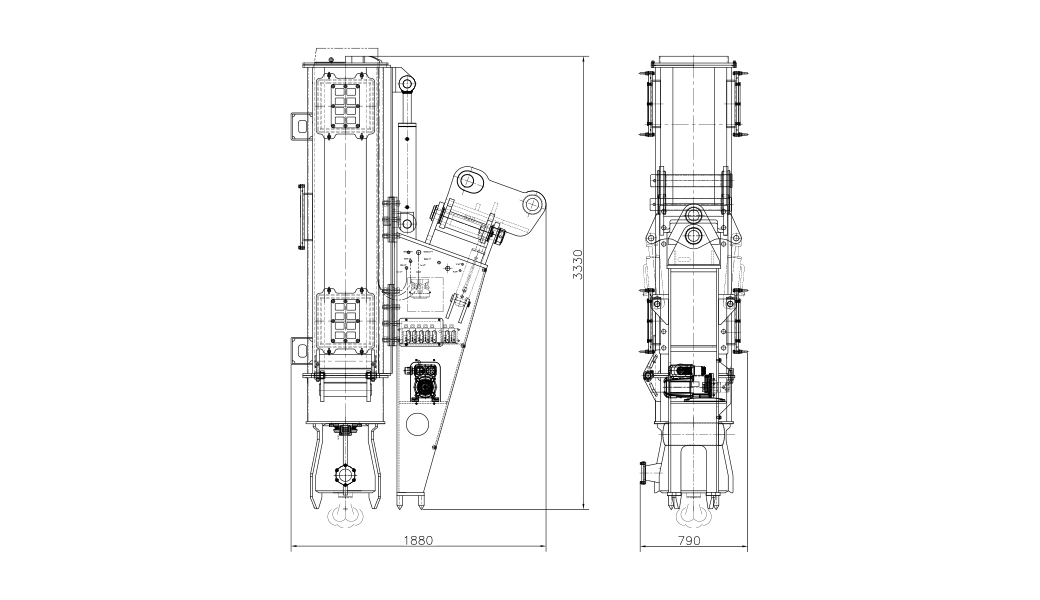

| Dmn. | Length | mm/in | 1880 / 74 |
| Width | mm/in | 790 / 31 | |
| Height | mm/in | 3330 / 131 | |
| Weight | kg/lb | 2700 / 5952 | |
The above specifications are subject to change without prior notice for quality enhancement.
