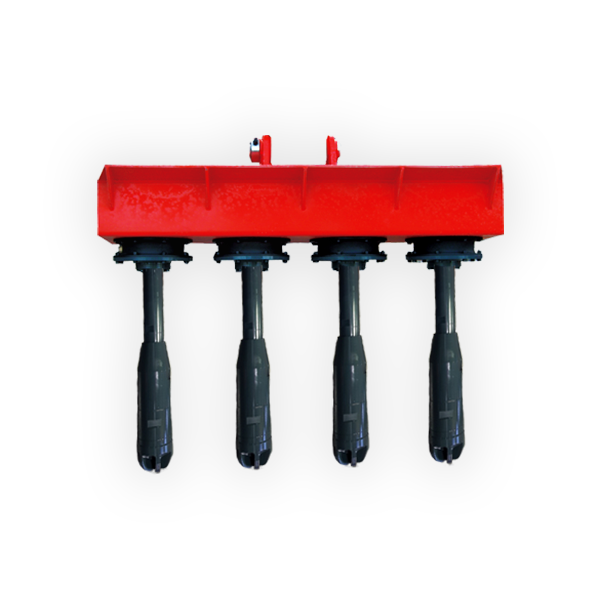

CONCRETE VIBRATOR
Applicable range from 7 to 18 ton class excavator
- MODELS
- DDV50, DDV130
- EXCAVATOR WEIGHTS
- ≥ 7 ≤ 18 Ton
Features / Advantages
-
Concrete density up to 6000~8000rpm high frequency vibration
-

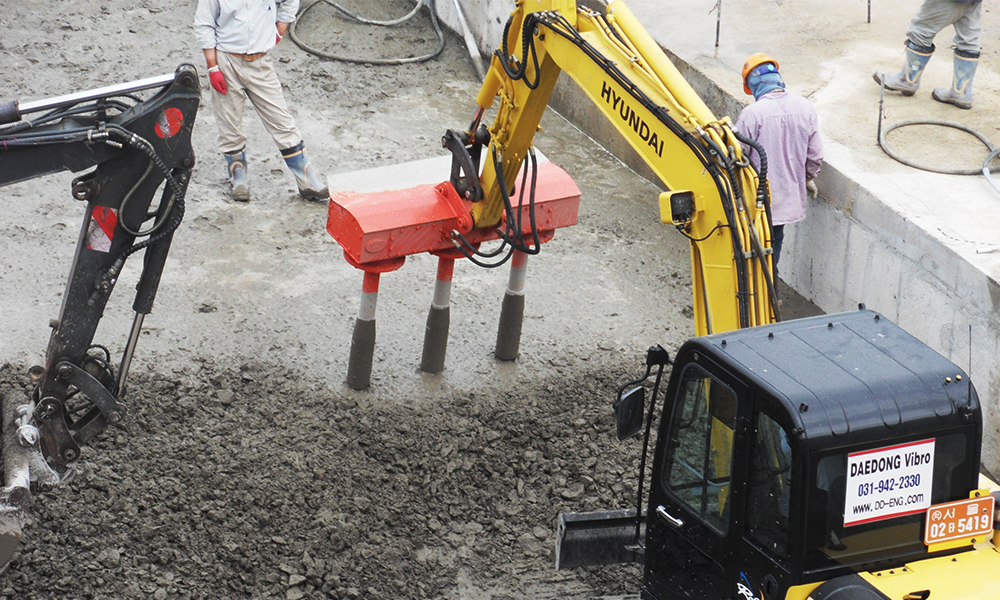

For RCD dam construction project
-
Highly durable, heat-treated wear resistant material
Applications
Foundation
Road
Utilities
Environment
Downtown areas
Landscaping
Specifications
DDV series |
DDV50 | DDV130 | |
|---|---|---|---|
| Excavator class | ton | 7-14 | 14-18 |
Frequency |
rpm | 7000-8000 | 6000-7500 |
| Hz | 110-130 | 100-125 | |
Oil Pressure |
kg/cm2 | 200 | 200 |
Oil Flow |
1/min | 70-80 | 120-130 |
Vibrator Bar |
ea | 3 | 4 |
Efficiency |
m3/h | 110-160 | 150-200 |

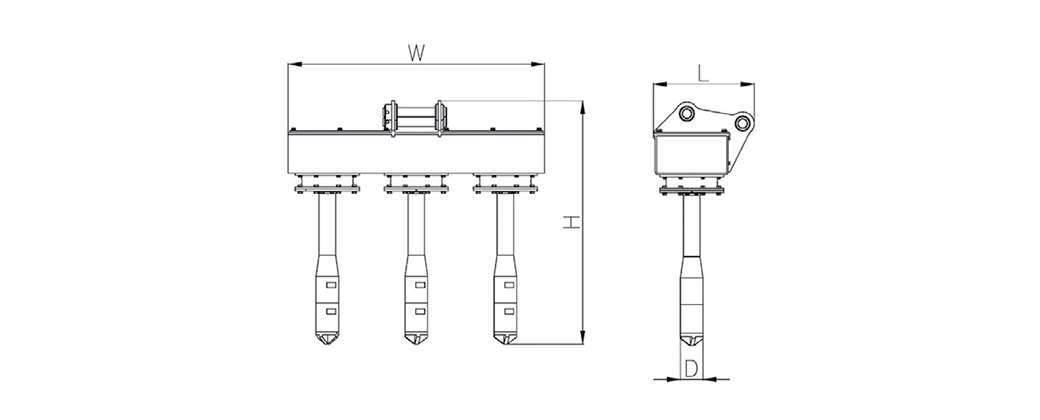

(D) Diameter |
Φ | Φ127 | Φ150 |
(W) Width |
mm | 1440 | 1900 |
(L) Length |
mm | 566 | 696 |
(H) Height |
mm | 1366 | 1532 |
Weight |
kg | 520 | 860 |
