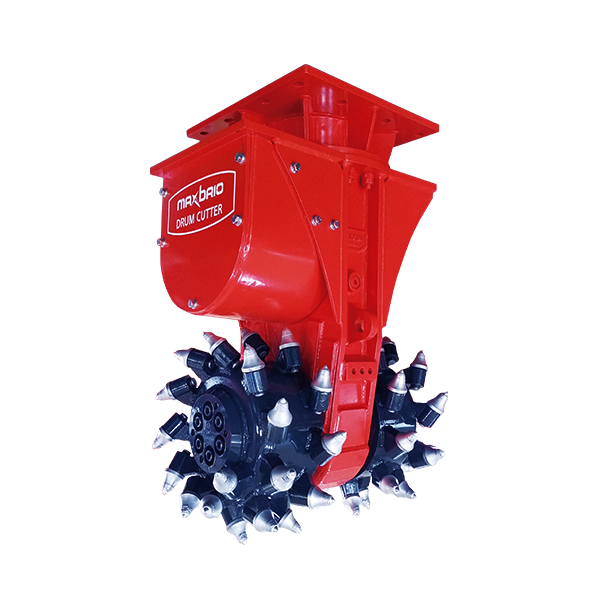

DRUM CUTTER
Applicable range from 20 to 40 ton class excavator
- MODELS
- DDC25, DDC35
- EXCAVATOR WEIGHTS
- ≥ 20 ≤ 40 Ton
Features / Advantages
-
Cutting, milling and scalling rock and concrete surface with low noise and vibration
-
High torque hydraulic motor and optimized tip pattern for higher productivity
-
Used as back-fill material without additional crushing
-
Robust housing design with wear resistant material
Applications
Demolitions
Roadworks
Quarries
Mining
Tunnel

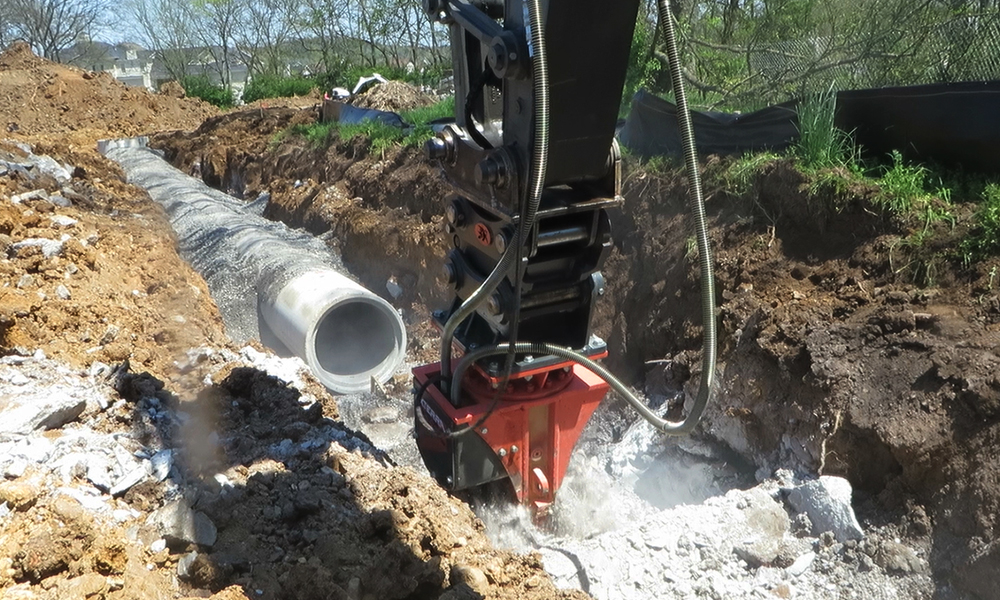

Trenching
Downtown areas
Excavation
Landscaping
Forestry
Scalling
Specifications
| Drum Cutter | DDC25 | DDC35 | |
|---|---|---|---|
| Excavator class | ton | 20-27 | 28-40 |
| Rotation speed | rpm | 60-110 | 50-85 |
| Setting Oil Pressure | kg/cm2 | 350 | 350 |
| Required Oil Flow | 1/min | 180-300 | 300-300 |
| (H) Height | mm/in | 1425 / 56 | 1450 / 57 |
| (L) Length | mm/in | 900 / 35 | 1000 / 39 |
| (W) Width | mm/in | 720 / 28 | 720 / 28 |
| Weight | kg/lb | 1500 / 3307 | 2100 / 4620 |
The above specifications are subject to change without prior notice for quality enhancement.
