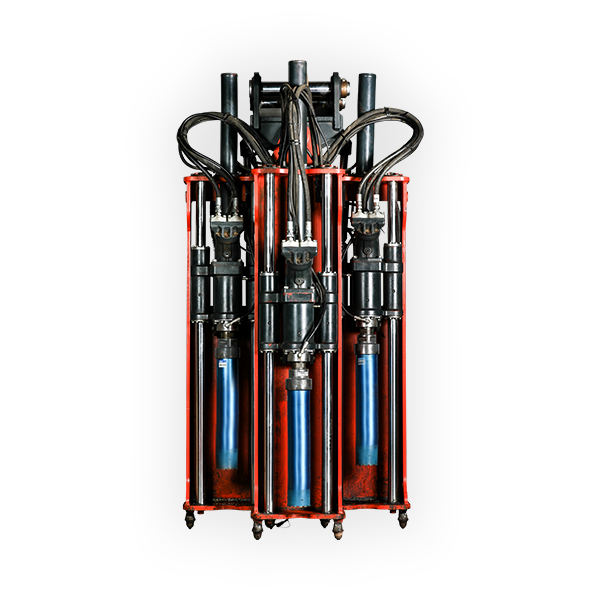

CORE DRILL
Applicable range from 28 to 35 ton class excavator
- MODELS
- DCD9000
- EXCAVATOR WEIGHTS
- ≥ 28 ≤ 35 Ton
Features / Advantages
-
Drill 3 holes at the sametime
-
Remote control reduces low labor cost and expense
-
Automatic control on torque, depth and drilling speed
-
Noise level below 60dB(A)
Applications
Road
Railway
Environment
Demolitions
Tunnel
Downtown areas
Landscaping
Forestry

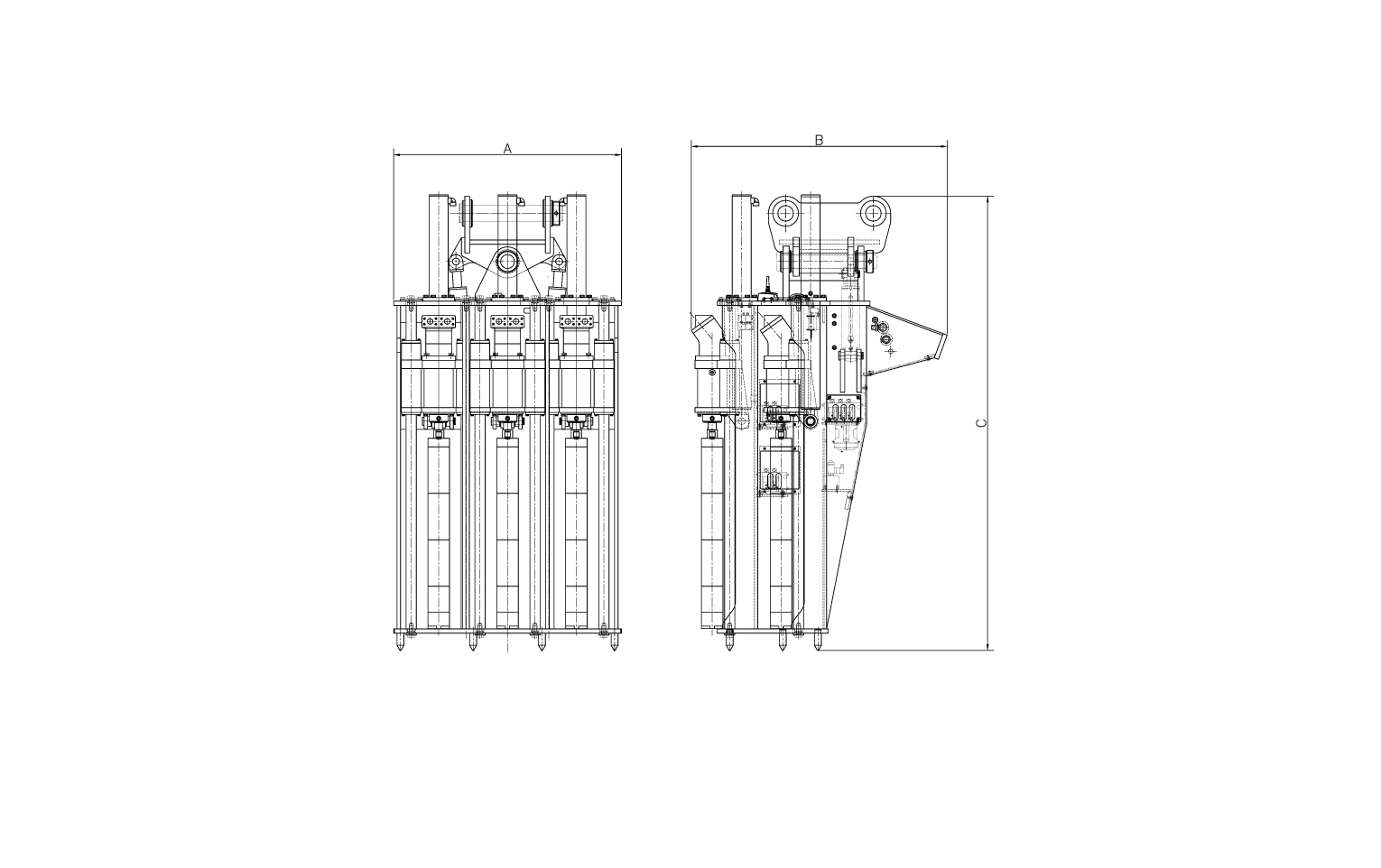

Specifications
| MULTI CORE DRILL | |||
|---|---|---|---|
| Excavator class | ton | 28-35 | |
| Length | mm/in | 1700 / 66.9 | |
| Width | mm/in | 1296 / 51 | |
| Height | mm/in | 2695 / 106.1 | |
| Weight | lb/kg | 4850 / 2200 | |
| Drilling | Hole | ea | 3 |
| Diameter | mm/in | 95-205 / 3.7-8 | |
| Length | mm/in | MAX. 1000 / 39 | |
| Speed | cm/min | 0-30 | |
| R.Speed | rpm | 0-1000 | |
The above specifications are subject to change without prior notice for quality enhancement.
